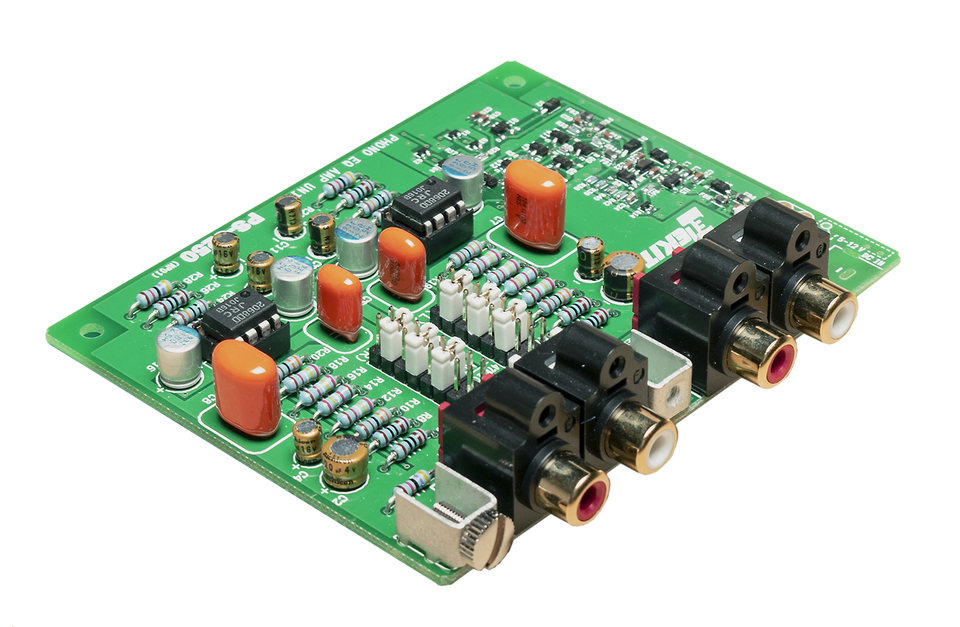

PS-3250 Phono Equalizer Amp Kit Set
日本 ELEKIT推出 Phono Equalizer Amp [ PS-3250
]
超值、細小之RIAA均衡器(唱頭放大器)套件
Tools required (需要工具): Diagonal Cutter (剪線鉗)， Soldering
Iron (烙鐵 / 焊接辣雞)
OUTLINE
- This
is an RIAA turntable preamplifier to convert a turntable’s phono-level output
to an RIAA-equalized line-level signal, supporting both MM and MC cartridges
by changing a jumper location on the PCB.
- For
OP-amp, a low-noise NJM2068DD is adopted.
- In addition,
for the electronic parts, ±1% tolerance metal oxide resistors and ±2％ tolerance
film capacitors are adopted to realize small RIAA deviation and low noise.
- For
the equalizer circuit, CR type is adopted and there is no concern for the
deviation of equalizing characteristics even when OP-amp is exchanged.
- A positive
and negative voltage generating circuit is on-board for the power unit, and
high quality sound and wide dynamic range are secured by supplying ±15V for
OP-amp.
- POP
noise suppressor upon power ON/OFF is on-board.

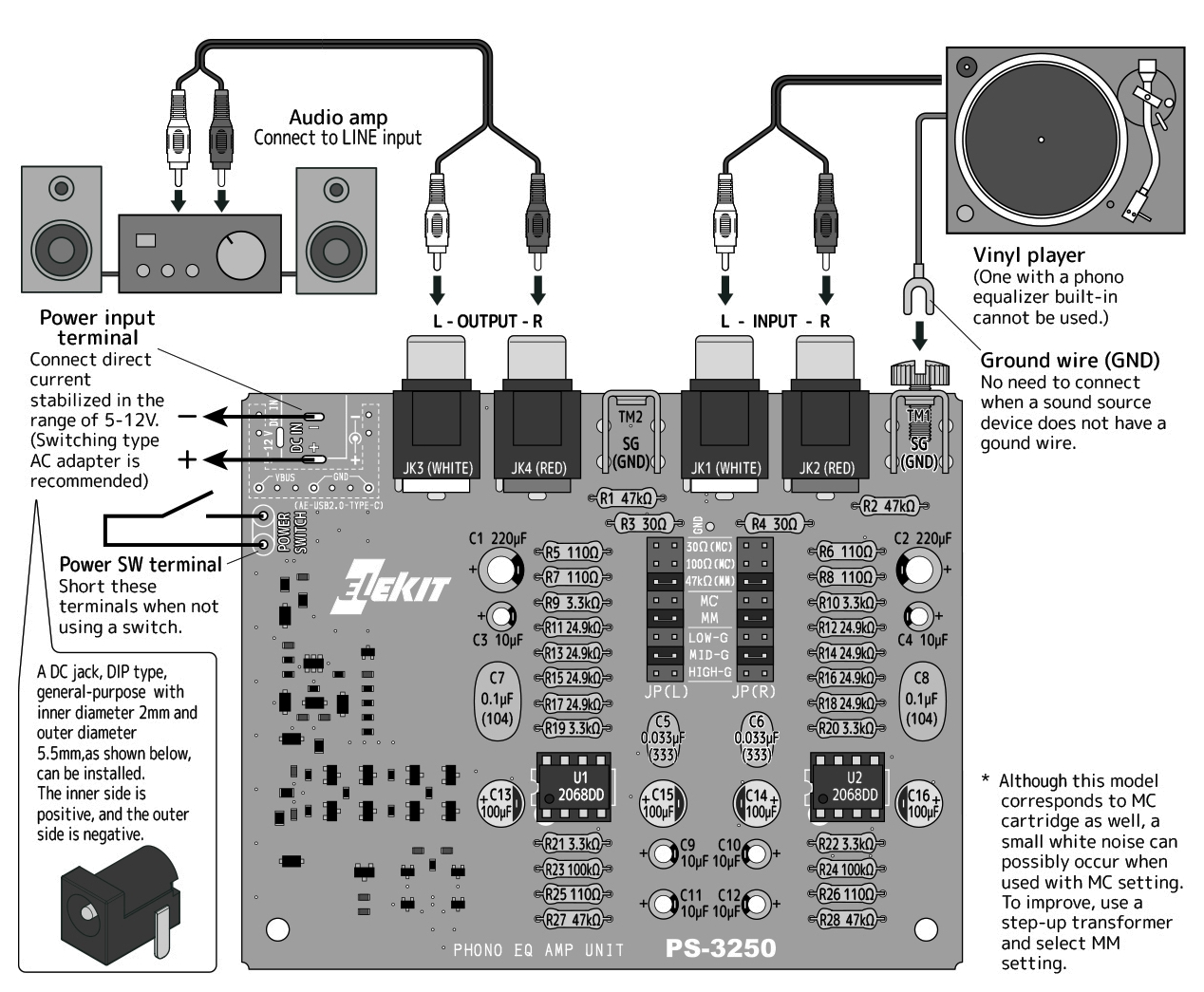

- In an
equalizer amp, the noise level, especially the hum noise, depends largely
on the IN/OUT wiring and the grounding location. (Therefore, for this kit,
IN/OUT jack and grounding bracket to fix those parts to the PCB are included.)
產品概要
- 這是RIAA標準唱盤放大器，用於將唱盤電平輸出轉換為RIAA電平信號，支援MM和MC唱頭。
- 採用低噪聲NJM2068DD之運算放大器。
- ±1％的金屬氧化物電阻及±2％的薄膜高級電子電容，以實現較小的RIAA偏差和低噪聲。
- 具有優異瞬態特性CR型均衡電路，即使更換運算放大器也不必擔心均衡特性有偏差。
- 電源電路板上帶有正負電壓，運放提供±15V的電壓，確保高質量的聲音和寬動態範圍。
- 內置電源開/關時的『POP』噪聲抑制器。
- 固定IN / OUT插孔與接地到PCB(底版)上，解決放大器之噪聲水平，尤其是『hum noise
/ 嗡嗡聲』。
【Specifications
規格及資料】
- Corresponding
cartridge : MM (Approx. 47kΩ), MC (Approx.100Ω or 30Ω)
- Circuiting
system : CR equalizer (RIAA), OP-amp dual amplification
- RIAA
deviation : Within ±0.5dB (20-20kHz)
- Gain
(@1kHz) : 27dB(MM, LOW-G), 32dB(MM, MID-G), 36dB(MM, HIGH-G) 56dB(MC, LOW-G),
62dB(MC, MID-G), 65dB(MC, HIGH-G)
- Non-clip
max. output (@1kHz) : 9V r.m.s.
- Power
voltage : DC 5-12V
- Power
consumption (OP-amp: NJM2068DD) : 100mA(5V), 30mA(12V)
- PCB
dimensions : 100 x 80 mm
Price: JPY 5,500 (日元)
可直接向本公司購買:
1) 請聯絡CNA
MUSIC LIMITED購買熱線26044802，確定存貨。
2) 把現金存入本公司提供的HSBC香港匯豐銀行。
3) 帶同存款收據到本公司取貨即可。
**************************************************
又可以看看日本Elekit如何加上精美金屬盒。
https://translate.google.com/translate?hl=zh-TW&sl=ja&u=https%3A%2F%2Fvoice.elekit.co.jp%2Farchives%2F5351&prev=search&pto=aue
Elekit 使用之金屬盒，在香港可以買得到。
Takachi Electric Industrial YM-150
https://hkcn.rs-online.com/web/p/desktop-enclosures/3732255/
Takachi Electric Industrial YM-130
https://hkcn.rs-online.com/web/p/desktop-enclosures/3732249/
**************************************************
|
|
